Artefacts: datasets and annotation

Making the data a model can learn from

Petr Pajdla

Institute of Archaeology, Czech Academy of Sciences, Brno

Ronald Harasim

Institute of Archaeology, Czech Academy of Sciences, Brno

David Spáčil

Institute of Archaeology, Czech Academy of Sciences, Brno

15. 9. 2026

The plan

1	The artefacts dataset — where the photographs come from
2	What “annotated” means · COCO, YOLO, Pascal VOC
3	Annotation tools · live demo of CVAT with SAM 2
4	You annotate, in your own CVAT project	16 minutes
5	What you had to decide	discussion
6	Three problems — imbalance · vocabularies · missing metadata
7	ArchaeoTag — everyone plays a round	phones out
8	Discussion — your dataset, your label set	groups 1 & 2 report

Half of this session is you working, not me talking.

Say the shape out loud. The single most important line is number 4: they will have annotated something before the break, and block 5 is about decisions they themselves just made.

Yesterday’s number

80%

have never used an image annotation tool.

• It is probably the largest single cost in every project we look at this week
• It is the one place where your expertise, not the model’s, decides the outcome
• And it is where the decisions that sink a project get made — quietly, early, by whoever built the label set

Do not oversell. The point of the hands-on is not that they learn a tool — it is that they feel how much interpretation is packed into one click, and see the disagreement in their own data ten minutes later.

The artefacts dataset

Where these photographs come from

• A detectorist finds an object in a field
• They report it — findspot, a photograph, sometimes a guess at what it is and some other metadata
• An archaeologist checks the record and assigns/confirms a type from a controlled list
• The photograph lands in AMČR-PAS, the public portal of the Archaeological Information System of the Czech Republic
• Explore the data and images in the Digital archive of the Archaeological Map of the Czech Republic

Three filters worth naming out loud if a question comes: what the detector beeps at, what a finder thinks is worth reporting, and what survives in the ground at all. Do not develop it here — it is the imbalance slide’s job.

AMČR-PAS: amcr-info.aiscr.cz. Photographs are published under CC BY-NC 4.0 with an IGSN (a DOI) per record.

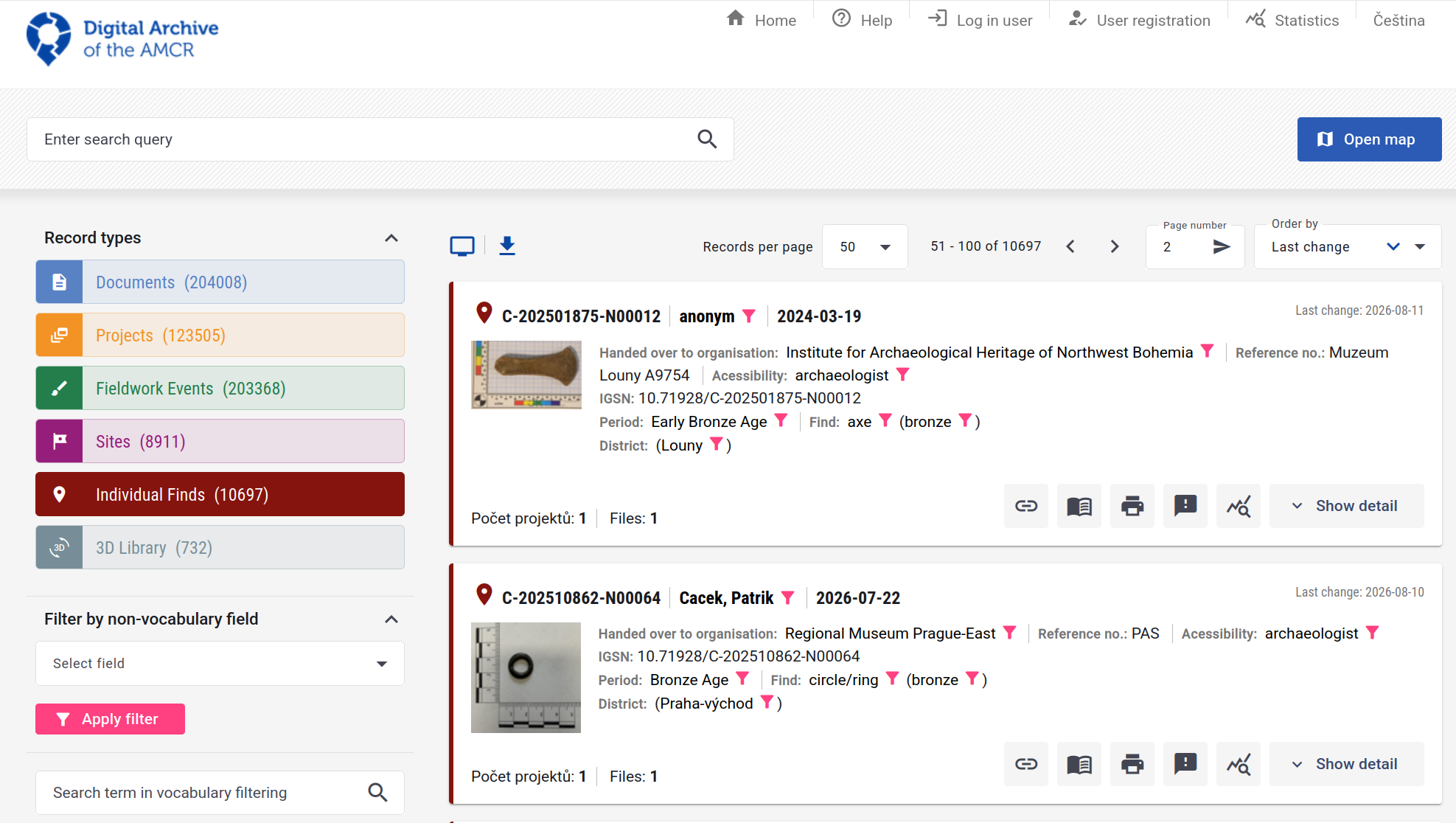

Digital Archive of the AMCR – Individual finds selected

What is in our dataset?

9 762

photographs

10 749

annotations

112

artefact types used

• Every annotation is a polygon, not just a box — 10 749 of them
• 207 types are declared in the file; 95 of them are never used once
• One photograph carries as many as 29 objects

This is a real working dataset, with all the untidiness that implies. We will open the actual file in a minute.

The 95 declared-but-unused categories are the most revealing number here. They come from the national thesaurus: the vocabulary was designed for the whole archaeological record, and this dataset only ever sees the part of it that a detectorist finds.

What “annotated” means

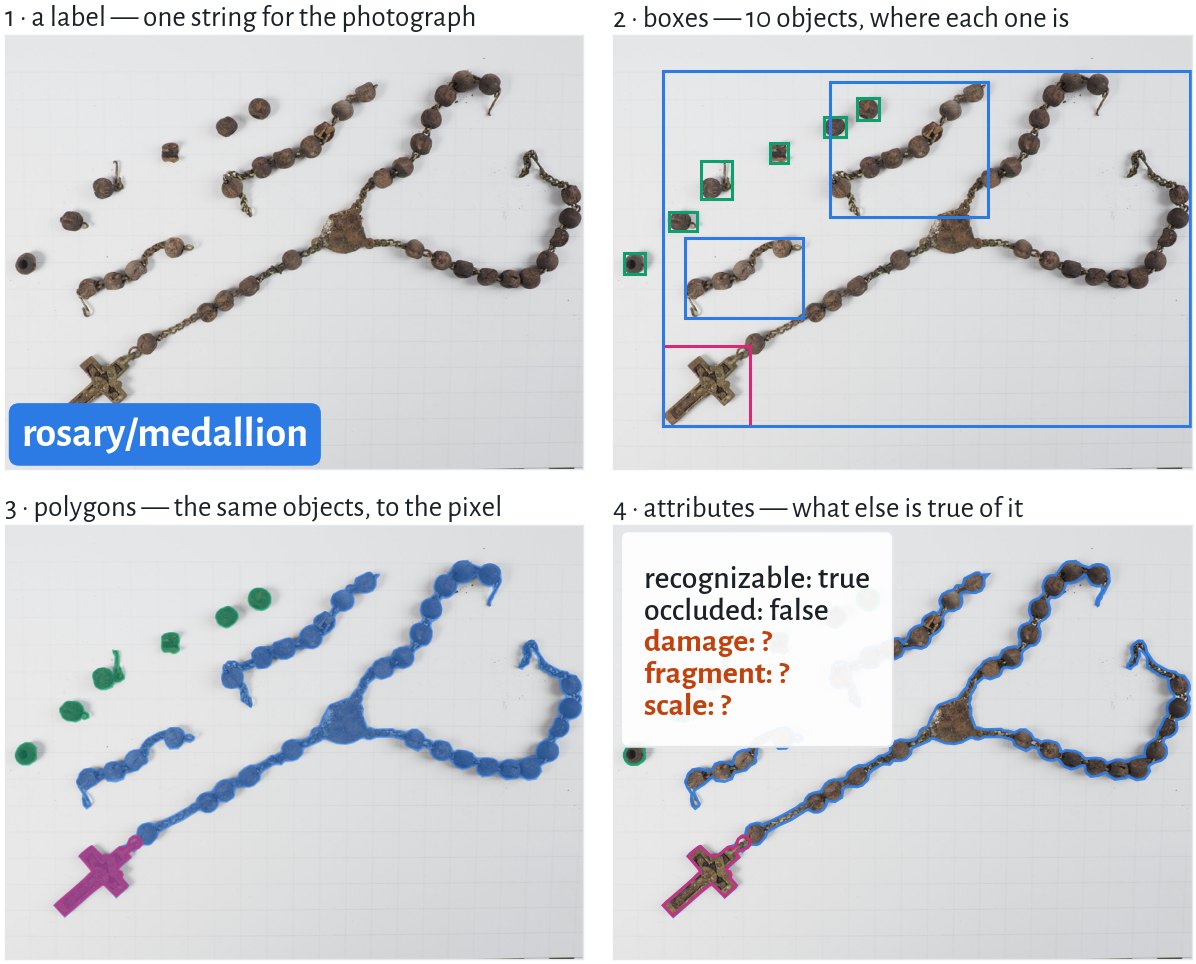

Four things people mean by it

Rosary: AMČR M-202400071-N00083, CC BY-NC 4.0

Same photograph, same objects. The annotation is a choice, and it is the expensive one.

Walk left to right, top to bottom, one sentence each. Then the question: which of the four do you need? The honest answer is almost always “one level less than you assumed”. The orange fields in panel 4 are deliberate — they are the ArchaeoTag hook, come back to them.

The task shape sets the cost

You want	You annotate	Roughly, per image
what is in this photograph?	one label	seconds
how many, and where?	a box per object	tens of seconds
what is its exact outline / area?	a polygon per object	minutes
what condition is it in?	attributes per object	seconds — if you decided the fields in advance

The order matters

Going from boxes to polygons after you have annotated 2 000 images means annotating 2 000 images again. Going the other way is free.

Yesterday: the task shape follows from the question. Today: and the question has a cost.

This is the slide to slow down on. If they take one thing from the morning it is that the annotation schema is a commitment, not a setting, and it is made before anyone has trained anything.

COCO: four keys and a convention

{
  "info":        { ... },
  "licenses":    [ ... ],
  "images":      [ {"id": 1, "file_name": "...", "width": 3978, "height": 2762}, ... ],
  "categories":  [ {"id": 1, "name": "adornment"}, {"id": 63, "name": "fibula"}, ... ],
  "annotations": [ {"image_id": 1, "category_id": 63, "bbox": [...], "segmentation": [...]}, ... ]
}

• One file for the whole dataset — images, label set and annotations together
• annotations point at images and categories by id, so nothing is repeated
• It carries boxes and polygons in the same record, which is why it is the default

Tip

Common Objects in Context — a benchmark dataset from 2014 whose file layout outlived it and became the de-facto interchange format.

Open the real file on screen now, not after the slide: categories first, then find the rosary in images, then filter annotations by its id. Let them watch you get lost for a second — that is the honest experience of a COCO file.

One annotation, as it really is

{
  "categories": [
    {"id": 58, "name": "cross"}, …
  ],
  "images": [
    {"id": 8987, "file_name": "…/M202400071N00083F01.jpeg",
     "width": 3978, "height": 2762}, …
  ],
  "annotations": [
    {"id": 9872, "image_id": 8987, "category_id": 58,
     "bbox": [837.8, 1760.0, 485.2, 445.9],
     "area": 216350.7,
     "segmentation": [[1301.3, 1762.7, 1279.0, 1760.0, …]],
     "iscrowd": 0,
     "attributes": {"recognizable": "true", "occluded": false}}, …
  ]
}

• image_id points into images, category_id into categories — the three lists are joined only by id
• bbox is x, y, width, height — corner, not centre
• segmentation is one flat list: x1 y1 x2 y2 …, here 47 vertices
• category_id is just 58. The word cross lives only in categories
• attributes is not standard COCO — the tool added it

The attributes key is the important one: it is an extension, it round-trips through CVAT and Label Studio but not through most training code. That is the general lesson — the useful archaeological metadata is exactly the part the format does not standardise.

The same annotation, three formats

COCO · one JSON file for the whole dataset

amcr-pas_v0.json

{"id": 9872, "image_id": 8987, "category_id": 58,
 "bbox": [837.8, 1760.0, 485.2, 445.9],
 "segmentation": [[1301.3, 1762.7, 1279.0, 1760.0, …]]}

bbox is the top-left corner plus width and height, in pixels. The polygon is kept. The image and the class name are found only by id.

YOLO · one .txt per image, one line per object

labels/M202400071N00083F01.txt

57 0.271594 0.717940 0.121971 0.161441

data.yaml

names: {…, 57: cross, …}

Class, then centre x, y, width, height ÷ image size. 0-based, so 58 becomes 57; cross is only in data.yaml. The polygon is gone.

Pascal VOC · one .xml per image

Annotations/M202400071N00083F01.xml

<annotation>
  <filename>M202400071N00083F01.jpeg</filename>
  <size><width>3978</width> <height>2762</height></size>
  <object>
    <name>cross</name>
    <bndbox>
      <xmin>838</xmin> <ymin>1760</ymin>
      <xmax>1323</xmax> <ymax>2206</ymax>
    </bndbox>
  </object>
</annotation>

The box is two corners, in whole pixels. The class name is written out, and the file names its own image. The polygon is gone.

Important

Every conversion is lossy in a different direction — and 57 means nothing without the data.yaml it came with.

If time is short, skip VOC and compare the two blocks on the left — the normalisation and the lost class name are the two things worth their slide space.

YOLO also has a segmentation variant that keeps polygons (normalised x y pairs after the class), so “the polygon is gone” is true of the detection format shown here.

Annotation tools

Four tools, one job

Tool	Runs	Good for
CVAT — cvat.ai	a server, or cvat.ai	images and video, a team, SAM 2 built in · what we use today
Label Studio — labelstud.io	a server	any data type — text, audio, time series as well as images
VIA — VGG Image Annotator	one HTML file in your browser	a small set, one person, no install, works offline
makesense.ai — makesense.ai	in your browser	quick boxes and polygons, no account, images stay on your computer

They all do the same thing: shapes, classes, attributes → a file. Pick by team size and data type, and check the export formats before you start.

One minute, no demos of the other three. The point is that the tool is the least important decision of the session: the label set and the definitions matter more, and every one of these writes COCO or something close to it.

VIA is the one to recommend to anyone with a few hundred photos and no server: a single file, nothing to install. Open the demo link if someone asks.

CVAT: the demo

Why CVAT today

• Built for images and video
• Projects → tasks → jobs, split across people
• SAM 2 one click away, under AI Tools

Live — the steps you will do next

1. Create a project and paste in labels.json: the classes and the three questions
2. Create a task from the photographs
3. Outline one find with SAM 2, give it a class, answer its questions
4. Export as COCO and open the JSON

labels.json is the schema. If you can read it, you know exactly what the dataset will contain.

Note

The AMČR-PAS annotations you have been looking at were made in CVAT — that is where recognizable and occluded come from.

Live, five minutes. Do exactly the steps they are about to do — the setup slide after this repeats them — on the rosary (temp/annotation/demo/). Resist the urge to tour the interface.

Export as COCO 1.0: the polygon and the attributes are both in the JSON, which is where our dataset’s attributes came from. If there is a minute, export a YOLO format as well and open the .txt: a number and four coordinates, no attributes, no class name. That is the three-formats slide happening in front of them.

Worth saying: CVAT forces a default on every attribute, which is why ours start at ?. Without that, an untouched object looks like an answer. The occluded flag is CVAT’s own per-shape switch, off unless someone turns it on, and it is false on all 10 749 annotations in the export.

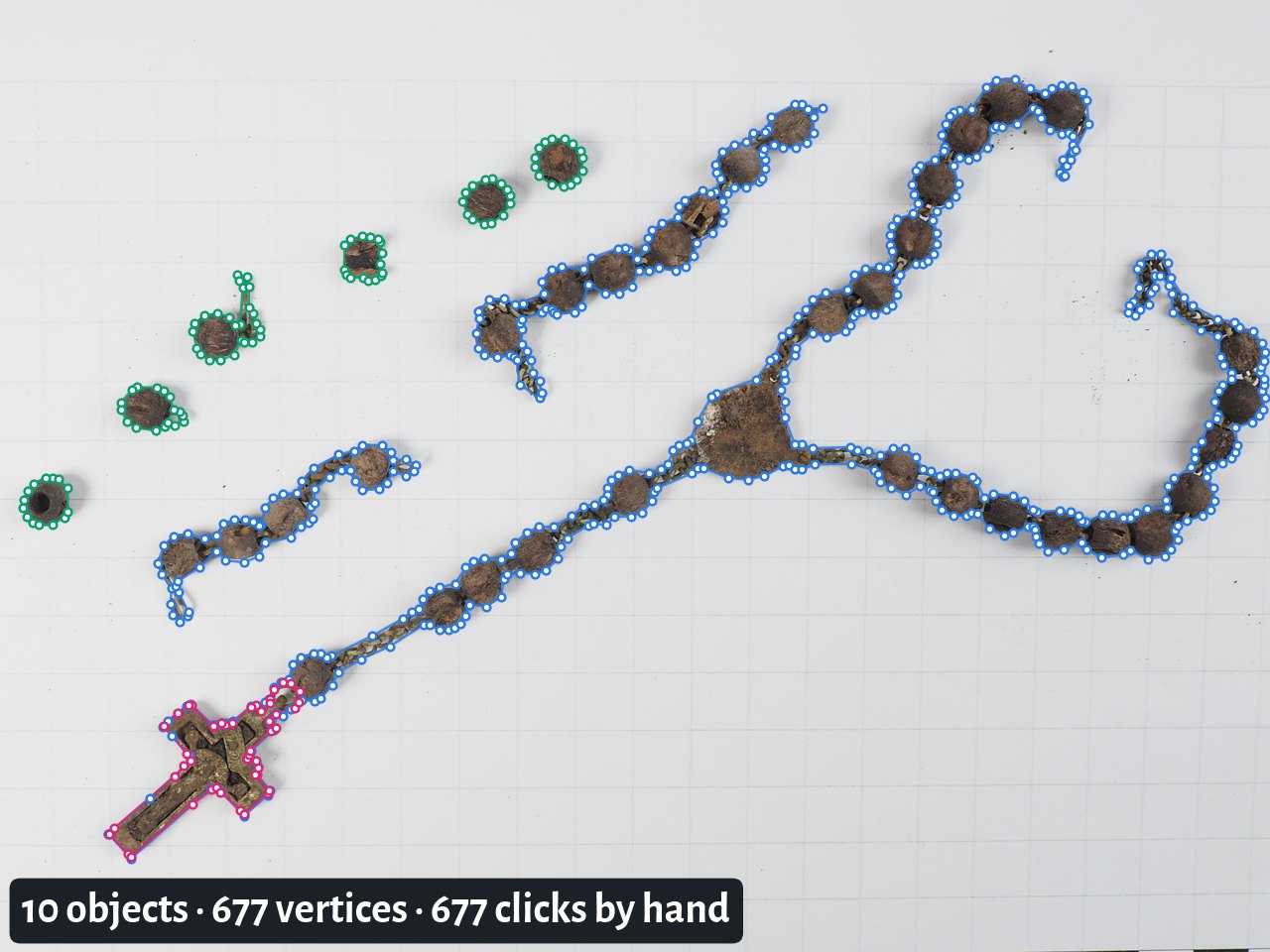

Why a polygon hurts

Rosary: AMČR M-202400071-N00083, CC BY-NC 4.0

One photograph. At 10 749 annotations across the collection, that is the scale of what somebody already did by hand.

Let this one sit for a beat before saying anything. The dots do the argument. Then: this is why model-assisted annotation is not a luxury.

SAM 2: click instead of trace

• A foundation model for segmentation — it has no idea what a fibula is, and does not need one
• You give it a point, a box or a scribble; it returns a mask
• It is class-agnostic: it finds the boundary, you supply the label
• In CVAT it is under AI Tools → Interactors: click the object, right-click what should be left out, then correct the result

Watch it fail

A corroded find on a background close to its own tone, and the mask leaks into the scale bar. Model-assisted is not model-decided — correcting a bad mask can cost more than drawing a good one.

Live: one clean find (instant, convincing), then deliberately a corroded one on the grey card. Show the mask leaking, fix it with a negative point, and say the honest number — assisted annotation is perhaps three to five times faster on easy objects and no faster at all on hard ones.

Your turn

CVAT, on our server

http://10.10.1.40:8081

or this one, it is misbehaving:

http://172.16.16.214:8081

Type it into your browser. It is a local address — it works only on the c network here.

Leave this slide up while people type the address; read it out once, digit by digit. If a browser complains, check that it kept http:// and did not switch to https://.

Set up your project

About 5 minutes. Everyone works on the same 10 photographs, each in their own project.

1. Open CVAT at http://10.10.1.40:8081 → Create an account
2. Pull the lessons repository — everything is in 2-tuesday-artefacts/
3. Projects → + → Create a new project · give it a name · open the Raw tab · replace everything in it with the contents of labels.json · Done · Submit & Open
4. In the project: + → Create a new task · give it a name · add the ten files from images/ under Select files · Submit & Open
5. Click the job in the task — that opens the first photograph

Tip

Stuck on step 3? The Raw tab must contain only labels.json — one [ at the start, one ] at the end.

CVAT’s address is on the previous slide and in step 1; put it on the board as well, as a QR code if you can. The files are in atrium-school-ml-lessons, folder 2-tuesday-artefacts/: images/ (the ten photographs, not the demo rosary), labels.json, and credits.csv; its README repeats these steps. Anyone who never cloned the repository can download it as a ZIP from GitHub (Code → Download ZIP).

Walk the room during setup. Step 3 is where people get stuck: pasting labels.json after the [] that is already in the Raw box, instead of replacing it. Most people are done in three to five minutes; start the clock on the next slide when about two thirds of the room are looking at a photograph.

Annotate

16 minutes. Everything after this slide is about decisions you make now.

1. Outline each artefact — SAM 2, polygon or box — and give it a class
2. In the objects list, answer fragment and damage
3. Whole photo: Setup tag → photo, answer scale
4. Not sure? Annotate it anyway, say why in note
5. Save (Ctrl+S), next photo

fragment a piece of an object, not a whole one?

damage none, minor or major?

scale is there a scale bar in the frame?

Tip

Do not compare with your neighbour. We will talk about what you decided, and why.

Everyone annotates in their own project, so nothing is shared and nothing is compared on screen afterwards — the next block is a discussion. Walk the room; note which photographs people hesitate on, and on 04, 06 and 08 what they chose. Those are what you ask about next.

The scale question is a tag on the whole photo, not on an object: people will miss it. Point at the tag button once, early. Give a two-minute warning at 14.

What you had to decide

hands up Photo 04: coin or pendant? · Photo 06: mount or pendant? · Photo 08: one object, or several?

• Your outlines will be close — SAM 2 saw to that
• Your classes will not, on two or three of the photographs — deliberately so
• Your attributes even less: fragment and damage are judgements nobody defined for you — is a broken fibula a fragment, or damaged?

SAM made your outlines agree. It could not make your meanings agree — and that is the disagreement inside every archaeological dataset you will ever download.

No screens: a show of hands per photograph is enough to make the split visible, and nobody’s work is on display. Go through the planted ones:

• 04, a pierced coin, recorded in AMČR as a pendant (M-202101534-N00375)
• 06, a crescent, recorded as a mount, which most people will call a pendant (M-202300130-N00146)
• 08, coins fused into a corroded lump: one object or several, coin or amorphous? (M-202105567-N00005)

The AMČR recorder’s own answer for each is in annotation/images.csv. Ask the people who disagreed to say why — out loud, without defending themselves. The answers are always about the definition, never about the photograph.

Agreement is a measurement

• If two people disagree on 15% of images, no model trained on it can do better than 85% — the ceiling is in the data, not the architecture
• Measure it: annotate an overlap set twice, report Cohen’s κ (two annotators) or Fleiss’ κ (more)
• Where κ is low, the fix is not more annotators. It is a better definition, with pictures of the edge cases

Important

An annotation guide with worked examples of the hard cases is worth more than doubling your training set.

Do not teach the kappa formula. The claim that matters is the ceiling: it reframes “our model only gets 82%” from a modelling problem into a data problem, which is where it usually belongs.

If someone asks what a better definition looks like, our schema has one. damage is defined by what you can see: minor is mild corrosion or scars, major is heavy corrosion with contours you cannot identify. It also says outright that fragment is distinct from damage, which settles the broken-fibula argument from the last slide.

Three problems

1 · What the ground gives you

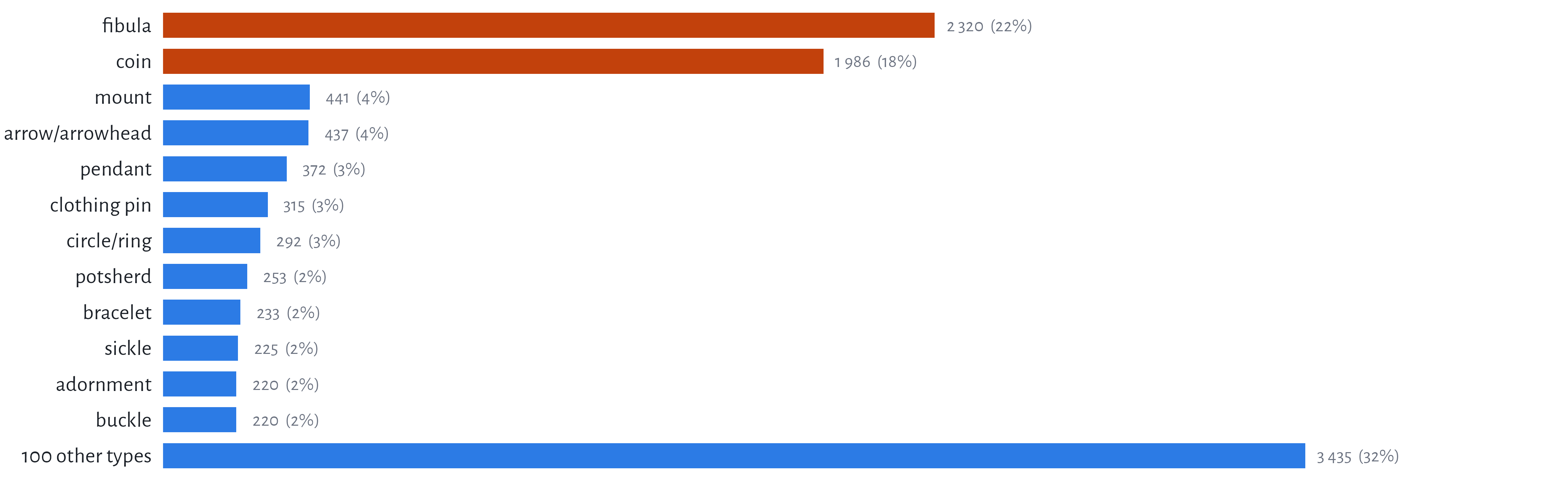

Fibulae and coins are 40.1% of every annotation in the dataset.

Do not read the bars. One sentence: two classes out of a hundred and twelve hold two fifths of the data, and that is before you ask whether the other hundred are usable at all.

The tail is the dataset

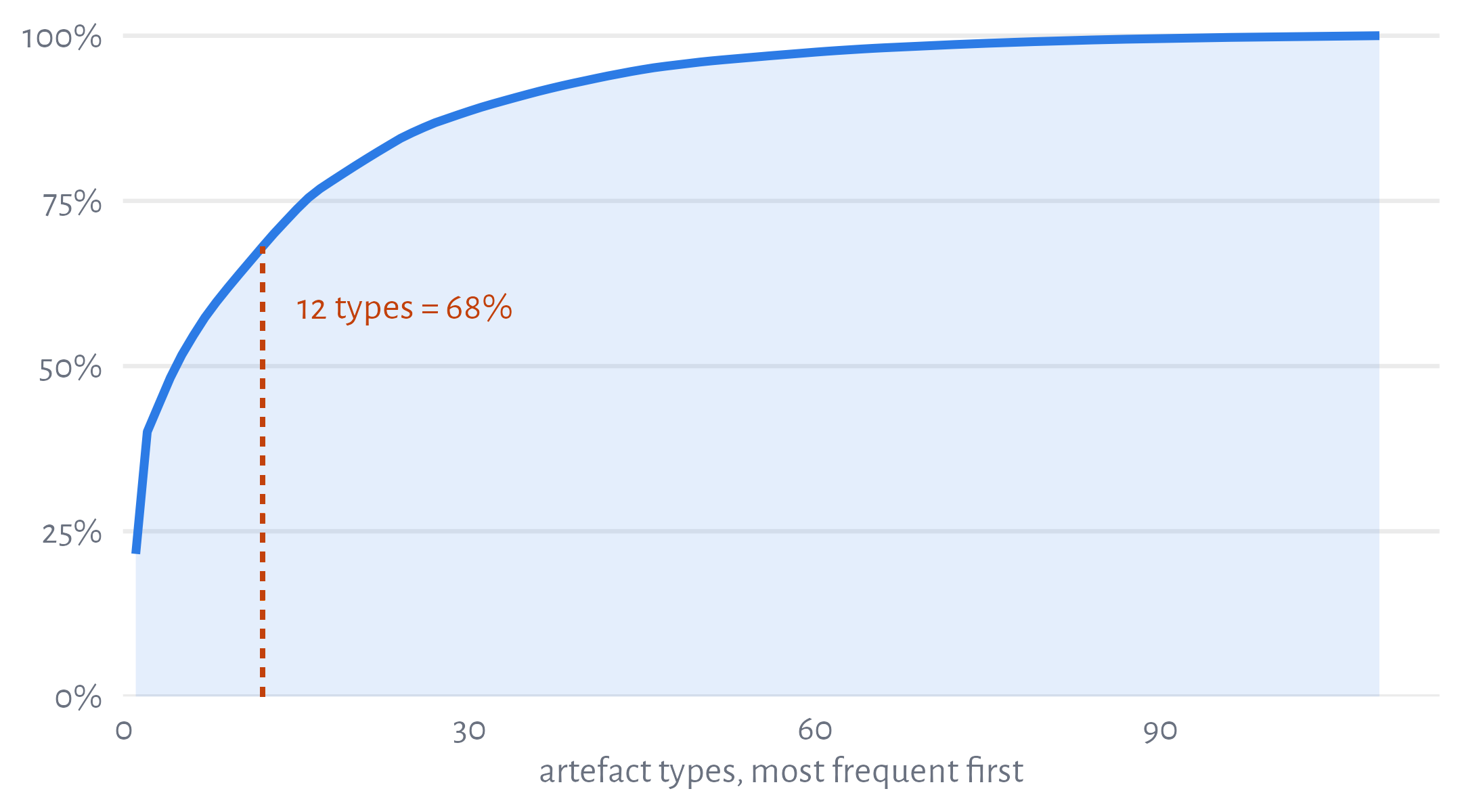

• 77 of the 112 types have fewer than 50 annotations — together, 8.9% of the data
• 95 types are in the label set and have never been seen
• A model trained on this learns 35 types well and the rest not at all

A classifier that ignores the image and always answers fibula scores 22%. Always fibula or coin: 40.1%.

The always-fibula baseline is the one number to make them write down. Any reported accuracy on an imbalanced set has to be compared against it, and a surprising number of published figures are not.

This is reporting bias, not the past

• Metal detectors find metal — a fibula beeps, a potsherd does not
• Finders report what looks like a find: complete, decorated, recognisable
• Recorders assign the type they are confident about, and amorphous fragment when not
• Archives digitise what is already catalogued

Important

40.1% fibulae and coins is a fact about detectorists, reporting and archives. It is not a fact about what was in the ground.

A model trained here learns the collection process at least as well as it learns the artefacts.

This is the intellectual centre of the session. Connect it back to the filter chain from the second slide of the deck — they have now seen the number the filters produce.

2 · Your labels are not their labels

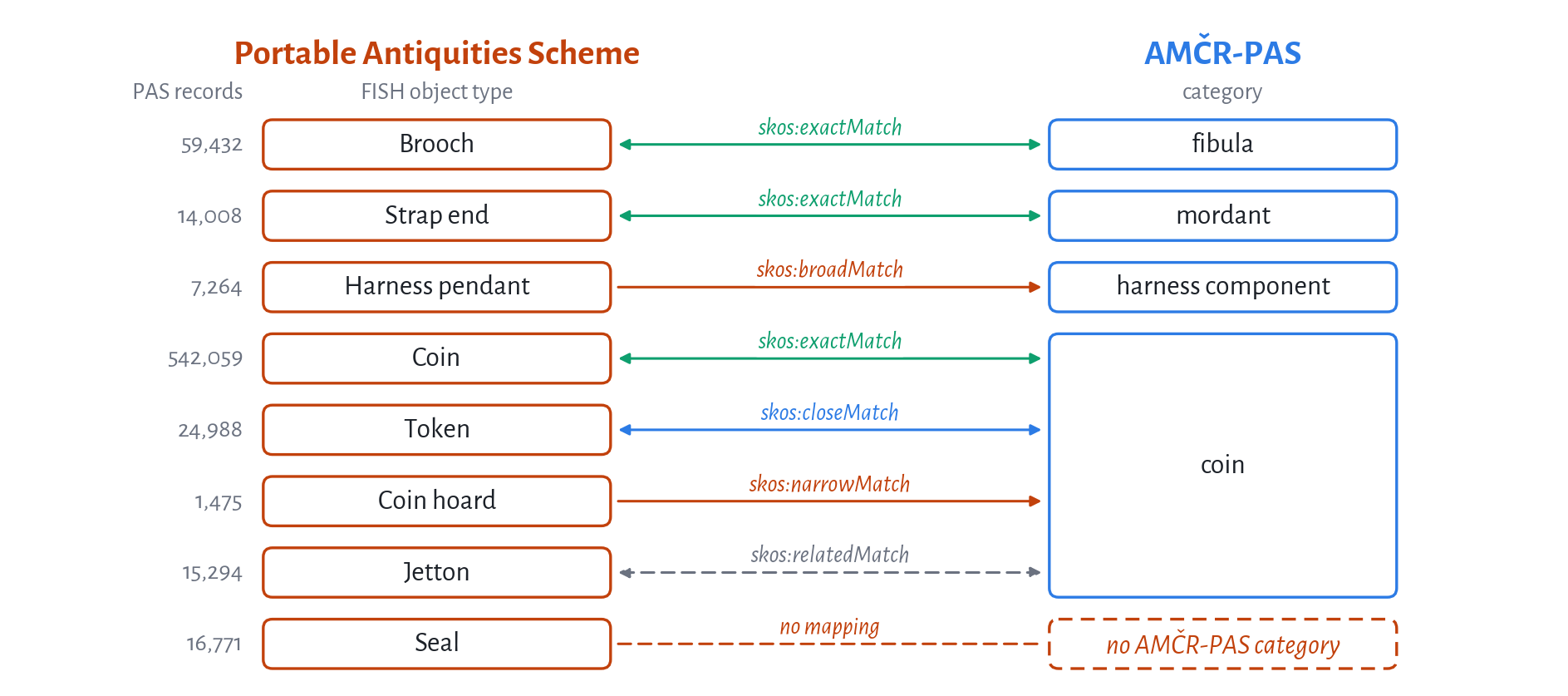

The British PAS (FISH vocabulary) against AMČR-PAS: 841 terms, and four different ways to land on coin. Strap end is mordant — no string match finds that.

Real rows from the PAS → AMČR-PAS mapping sheet, all of them marked validated. Record counts are PAS database records for that object type. Walk down the coin box: the same target, four relations, four different things you may do with the data — merge coin, merge token with a note, do not relabel a hoard as coin (that rolls down — next slide), keep jettons out. Seal has 16,771 PAS records and nowhere to go.

SKOS, in three predicates

	means	safe to do	PAS → AMČR-PAS
skos:exactMatch	interchangeable in any context	merge the two classes	119
skos:closeMatch	interchangeable in some contexts	merge, and say so in the paper	53
skos:broadMatch / narrowMatch	one is wider than the other	roll the narrow one up; never down	232 / 7
skos:relatedMatch	associated, not substitutable	do not merge	17
(none)	no counterpart	leave out, and count what you lost	25

closeMatch does not chain

A closeMatch B and B closeMatch C says nothing about A and C. Two hops through a crosswalk and you have a class that means whatever the path happened to be.

SKOS is a W3C standard for publishing exactly this: concepts with stable URIs, their labels in several languages, and typed links between vocabularies.

exactMatch is transitive, closeMatch deliberately is not — that asymmetry is the whole practical content of the slide. If someone asks about OWL sameAs: SKOS is about concepts, not individuals, which is why it fits vocabularies and OWL does not. The PAS → AMČR-PAS column counts only the rows someone has validated.

The mapping, as a file

@prefix skos: <http://www.w3.org/2004/02/skos/core#> .
@prefix fish: <http://purl.org/heritagedata/schemes/mda_obj/concepts/> .
@prefix amcr: <https://example.org/amcr-pas/> .    # placeholder, see below

fish:96665   skos:prefLabel    "Brooch"@en ;
             skos:exactMatch   amcr:fibula .

fish:140465  skos:prefLabel    "Strap end"@en ;
             skos:exactMatch   amcr:mordant .

fish:97525   skos:prefLabel    "Coin hoard"@en ;
             skos:narrowMatch  amcr:coin .

fish:95426   skos:prefLabel    "Jetton"@en ;
             skos:relatedMatch amcr:coin .

• One row of the sheet is one triple — Turtle, the W3C text format for RDF
• fish: URIs are the FISH thesaurus’ own; amcr: is a placeholder — the sheet has AMČR-PAS labels, not URIs
• validated has no SKOS predicate: 388 of 841 rows are unchecked, so publish the checked ones, or say who checked what

Four rows straight from the mapping sheet (fish column → subject, mappingRelation → predicate, target → object). Point out that the file is readable without any tooling — that is the argument for publishing it next to the dataset. The real AMČR-PAS concept URIs replace the placeholder once the categories are published.

What a crosswalk buys you

• A shared coarse level — brooch, pin, buckle map cleanly; seal has nowhere to go
• Training on the union of two collections, honestly, with the merge written down
• Evaluating a Czech-trained model on British data without silently renaming anything

The realistic outcome

You will lose resolution. Of the 112 AMČR-PAS categories in the dataset, only 63 have a validated exactMatch in PAS — and 28 PAS types roll up into instrument alone. That is still a far better dataset than either alone — and the mapping is a research output in its own right.

Emphasise “written down”. The difference between a defensible merged dataset and a mess is a published mapping file, not the merging itself.

3 · The metadata nobody has time for

What the file records:

"attributes": {
  "recognizable": "true",
  "occluded": false
}

• Every one is a seconds-long judgement — and 10 749 × several seconds is weeks of somebody’s time
• None of it needs a specialist. Anyone can see whether an object is broken or whether there is a ruler in the frame
• Which makes it exactly the kind of work you can ask a crowd to do

What the schema asks for:

"attributes": {
  "type":           ?,
  "context":        ?,
  "view":           ?,
  "recognizable":   true,
  "damage":         ?,
  "fragment":       ?,
  "iconic":         ?,
  "group":          ?,
  "occluded":       false,
  "truncated":      ?,
  "composite":      ?,
  "scale":          ?,
  "colorReference": ?,
  "markup":         ?
}

Land the contrast: the polygons needed an expert and cost 677 clicks a photograph; these fields need no expertise at all and are the ones missing. That asymmetry is the argument for the next slide.

The right-hand block is the schema ArchaeoTag collects into (imagetag_schema.json in arubrno/archiv-digilab): fourteen fields. The COCO export predates it, and it has two. Even those two are thinner than they look: occluded is false on every one of the 10 749 annotations. It is CVAT’s own per-shape switch, off unless someone turns it on, so it records a default, not a judgement.

ArchaeoTag

Guess what this is

Phones out. Open the URL on the board — three minutes of play.

• You are shown a photograph of a find and asked what it is
• Along the way you answer the easy questions: a fragment? damaged? is there a scale?
• You find out whether you were right — that is the game
• We get a crowd-sourced answer to the fields the file does not have

Tip

The guessing is the incentive. The metadata is the point, and nobody playing has to care.

Three minutes of play, then stop them firmly — they will not want to stop. Have the results view ready on the projector before you start.

What a guess is worth

• One guess is noise. Twenty guesses on the same photograph is a distribution
• Where players agree, you have a usable attribute at effectively zero cost
• Where they disagree, you have found a genuinely ambiguous object — which is worth knowing, and is exactly what you want an expert to look at
• Their guesses at the class are a free baseline: how hard is this dataset for a human?

The same logic as the last hour: disagreement is data, not failure.

Warning

Crowd labels are good for is there a scale bar in this photograph. They are not good for is this an Almgren 236 fibula. Know which question you are asking.

Show the live results from the round they just played. If agreement on some attribute is poor, say so — it is the honest version of the same point they met in block 5.

Discussion

Your dataset, your label set

8 minutes in your group. Groups 1 & 2 report back.

1. Take one dataset somebody in the group works with. What are its classes — and who decided them?
2. What is the annotation bill? Number of images × the level you actually need. Give us hours.
3. What in that dataset is over-represented for reasons that have nothing to do with the past — how it was collected, who reported it, what survives?
4. Which attributes would you want that nobody has recorded? Could a stranger answer them?

Note

Question 2 in hours, out loud. It is usually the moment a project’s scope becomes visible.

Push hard on (3) — every dataset in the room has one and most people have never named it. The answers feed straight into this afternoon’s project presentations, so write them down.

Reporting back

Groups 1 & 2, then anyone with a good answer to (3):

• The dataset and who decided its classes
• The bill, in hours
• The bias you named

Tip

This afternoon is yours: present your own data and problems. Everything on this slide is a good place to start from.

Wrapping up

Five things to carry into the week

1. The annotation schema is a commitment, not a setting — boxes to polygons means starting again
2. Every format is lossy in its own direction; keep the COCO and export from it
3. Disagreement between annotators is the ceiling on any model you train
4. An imbalanced dataset describes how it was collected at least as much as what it contains
5. Labels are local. Mapping between vocabularies is real work, and worth publishing

Next up

This afternoon — your own projects and datasets. Tomorrow — microscopy, and what to do to images before a model ever sees them.

Where to read more

Tools

• CVAT — cvat.ai
• Label Studio — labelstud.io
• VIA — robots.ox.ac.uk/~vgg/software/via
• makesense.ai — makesense.ai
• SAM 2 — ai.meta.com/sam2
• COCO format — cocodataset.org/#format-data
• SKOS primer — w3.org/TR/skos-primer

Data and vocabularies

• AMČR-PAS — amcr-info.aiscr.cz
• Getty AAT — getty.edu/research/tools/vocabularies/aat
• Portable Antiquities Scheme — finds.org.uk
• ARIADNE — ariadne-research-infrastructure.eu

Slides: github.com/arup-cas/atrium-school-ml · Photographs: AMČR, CC BY-NC 4.0 · Licences: MIT (code) & CC BY-SA 4.0 International (other content), if not stated otherwise.
